Product Summary
The INA138NA/3K is a high－side, unipolar, current shunt monitor. Wide input common－mode voltage range, low quiescent current, and tiny SOT23 packaging enable use in a variety of applications. Input common－mode and power－supply voltages are independent and can range from 2.7V to 36V for the INA138NA/3K and 2.7V to 60V for the INA168. Quiescent current is only 25μA, which permits connecting the power supply to either side of the current measurement shunt with minimal error. The device converts a differential input voltage to a current output. This current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement, the circuit invites creative applications in measurement and level shifting. Both the INA138NA/3K is available in SOT23－5 and are specified for the －40°C to +125°C temperature range.
Parametrics
INA138NA/3K absolute maximum ratings: (1)Supply Voltage, V+, INA138: －0.3V to 60V; (2)Analog Inputs, VIN+, VIN－ INA138 Common Mode(2): －0.3V to 60V, ; (3)Differential (VIN+) － (VIN－):－40V to 2V; (4)Analog Output, Out(2): －0.3V to 40V; (5)Input Current Into Any Pin: 10mA; (6)Operating Temperature: －55°C to +150°C; (7)Storage Temperature: －65°C to +150°C; (8)Junction Temperature: +150°C.
Features
INA138NA/3K features: (1) complete unipolar high－side current measurement circuit; (2) wide supply and common－mode range; (3) ina138: 2.7V to 36V; (4) ina168: 2.7V to 60V; (5) independent supply and input commonmode voltages; (6) single resistor gain set; (7) low quiescent current (25μA typ); (8) wide temperature range: －40℃ to +125℃; (9) sot23－5 package.

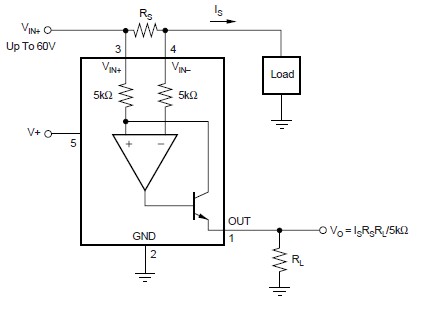

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 INA138NA/3K |
Texas Instruments |
Current & Power Monitors & Regulators Hi-Sd Msmnt Current Shunt Mntr Crnt Otp |
Data Sheet |
|
|
||||||||||||
|
INA138NA/3KG4 |
Texas Instruments |
Current & Power Monitors & Regulators Hi-Sd Msmnt Current Shunt Mntr Crnt Otp |
Data Sheet |
|
|
||||||||||||
