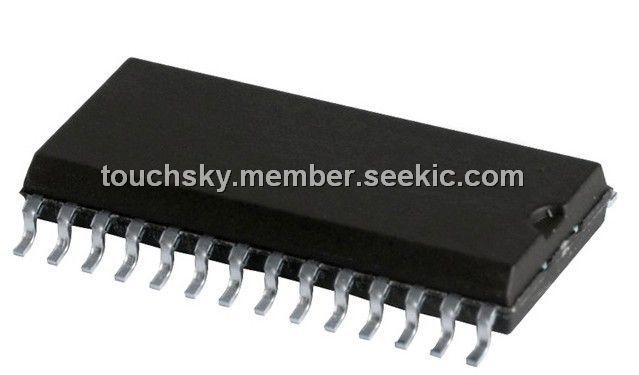

SJA1000T

stand-alone controller, 28-SOIC, 4.5 V ~ 5.5 V, 15mA, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.27~6.74 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.27~6.74

PartNumber:: SJA1000T

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. John's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-30

From Other Seller

Part Number:SJA1000T
US $3.27 - 6.74
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SJA1000T is a stand-alone controller for the Controller Area Network (CAN) used within automotive and general industrial environments. The SJA1000T is the successor of the PCA82C200 CAN controller (BasicCAN) from Philips Semiconductors. Additionally, a new mode of operation is implemented (PeliCAN) which supports the CAN 2.0B protocol specification with several new features.

Parametrics

SJA1000T absolute maximum ratings: (1)supply voltage: -0.5 +6.5 V; (2)input/output current on all pins except TX0 and TX1: ±4 mA; (3)sink current of TX0 and TX1 together: 30 mA; (4)source current of TX0 and TX1 together: -20 mA; (5)operating ambient temperature: -40 +125 ℃; (6)storage temperature: -65 +150 ℃; (7)total power dissipation: 1.0 W.

Features

SJA1000T features: (1)Pin compatibility to the PCA82C200 stand-alone CAN controller; (2)Electrical compatibility to the PCA82C200 stand-alone CAN controller; (3)PCA82C200 mode (BasicCAN mode is default); (4)Extended receive buffer (64-byte FIFO); (5)CAN 2.0B protocol compatibility (extended frame passive in PCA82C200 compatibility mode); (6)Supports 11-bit identifier as well as 29-bit identifier; (7)Bit rates up to 1 Mbits/s; (8)24 MHz clock frequency; (9)Interfaces to a variety of microprocessors; (10)Programmable CAN output driver configuration; (11)Extended ambient temperature range (-40 to +125 ℃).
