Product Summary

The TLV5636ID is a 12-bit voltage output DAC with a flexible 4-wire serial interface. The serial interface allows glueless interface to TMS320 and SPI, QSPI, and Microwire serial ports. The TLV5636ID is programmed with a 16-bit serial string containing 4 control and 12 data bits. The applications of the TLV5636ID are Digital Servo Control Loops, Digital Offset and Gain Adjustment, ndustrial Process Control, Machine and Motion Control Devices, Mass Storage Devices.

Parametrics

TLV5636ID absolute maximum ratings: (1)Supply voltage (V DD to AGND): 7 V; (2)Reference input voltage: - 0.3 V to V DD + 0.3 V; (3)Digital input voltage range: - 0.3 V to V DD + 0.3 V; (4)Operating free-air temperature range, T A:-40℃ to 85℃; (5)Storage temperature range, T stg: -65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLV5636ID features: (1)12-Bit Voltage Output DAC; (2)Programmable Internal Reference; (3)Programmable Settling Time:1μs in Fast Mode,3.5μs in Slow Mode; (4)Compatible With TMS320 and SPI Serial Ports; (5)Differential Nonlinearity:<0.5 LSB Typ; (6)Monotonic Over Temperature.

Diagrams

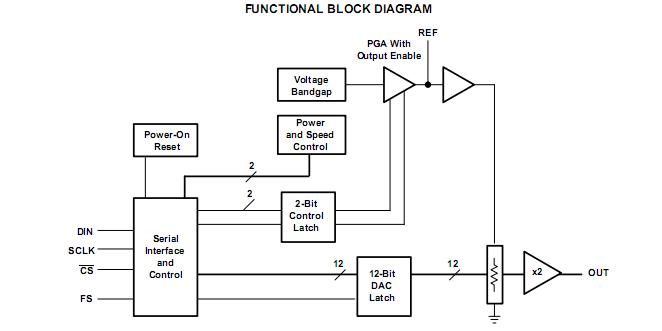

TLV5636ID block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLV5636ID
TLV5636ID
Texas Instruments
DAC (D/A Converters) 12bit DAC w/Power D
Data Sheet
0-1: $6.51
1-25: $6.22
25-100: $4.67
100-250: $4.58
TLV5636IDG4
TLV5636IDG4
Texas Instruments
DAC (D/A Converters) 12bit DAC w/Power D
Data Sheet
0-1: $6.43
1-25: $5.72
25-100: $4.67
100-250: $4.58
TLV5636IDGKG4
TLV5636IDGKG4
Texas Instruments
DAC (D/A Converters) 12-Bit 1 us DAC Serial Out
Data Sheet
0-1: $6.43
1-25: $6.22
25-100: $4.67
100-250: $4.58
TLV5636IDGK
TLV5636IDGK
Texas Instruments
DAC (D/A Converters) 12bit DAC w/Power D
Data Sheet
0-1: $6.51
1-25: $6.22
25-100: $4.67
100-250: $4.58
TLV5636IDGKR
TLV5636IDGKR
Texas Instruments
DAC (D/A Converters) 12-Bit 1 us DAC Serial Out
Data Sheet
0-2023: $3.46
2023-2500: $3.46
TLV5636IDGKRG4
TLV5636IDGKRG4
Texas Instruments
DAC (D/A Converters) 12-Bit 1 us DAC Serial Out
Data Sheet
0-2023: $3.46
2023-2500: $3.46
TLV5636IDRG4
TLV5636IDRG4
Texas Instruments
DAC (D/A Converters) 12-Bit 1 us DAC Serial Out
Data Sheet
0-2023: $3.46
2023-2500: $3.46
TLV5636IDR
TLV5636IDR
Texas Instruments
DAC (D/A Converters) 12-Bit 1 us DAC Serial Out
Data Sheet
0-2023: $3.46
2023-2500: $3.46
