Product Summary

The ADP-2-1+ is a power splitter/combiner.

Parametrics

ADP-2-1+ absolute maximum ratings: (1)Operating Temperature －40°C to 85°C; (2)Storage Temperature －55°C to 100°C; (3)Power Input (as a splitter)0.5W max; (4)Internal Dissipation 0.125W max.

Features

ADP-2-1+ features: (1)low insertion loss, 0.4 dB typ.; (2)excellent amplitude unbalance, 0.01 dB typ.; (3)very good phase unbalance, 0.3 deg. typ.; (4)aqueous washable; (5)protected under U.S. Patent 6,133,525.

Diagrams

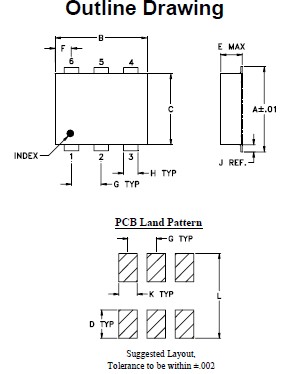

ADP-2-1+ dimension
