Product Summary

The MAX3485EESA+T is a 3.3V, low－power transceiver for RS－485 and RS－422 communication. Each part contains one driver and one receiver. The MAX3485EESA+T features slew－rate－limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error－free data transmission at data rates up to 250kbps. The partially slew－rate－limited MAX3486 transmits up to 2.5Mbps. The MAX3485EESA+T transmits at up to 10Mbps. Drivers are short－circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high－impedance state. The receiver input has a fail－safe feature that guarantees a logic－high output if both inputs are open circuit. The MAX3485EESA+T features full－duplex communication, while the MAX3485EESA+T is designed for half－duplex communication.

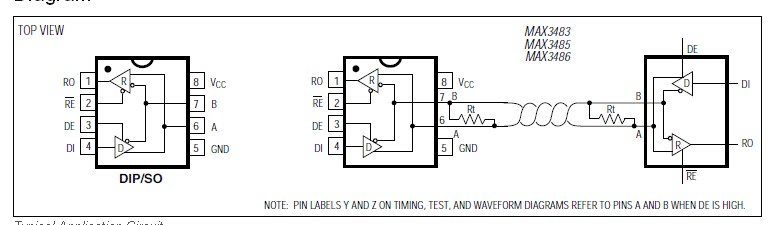

Parametrics

MAX3485EESA+T absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Control Input Voltage (RE, DE): －0.3V to 7V; (3)Driver Input Voltage (DI): －0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z): －7.5V to 12.5V; (5)Receiver Input Voltage (A, B): －7.5V to 12.5V; (6)Receiver Output Voltage (RO): －0.3V to (VCC + 0.3V); (7)Continuous Power Dissipation (TA = +70°C): 8－Pin Plastic DIP (derate 9.09mW/°C above +70°C): 727mW, 8－Pin SO (derate 5.88mW/°C above +70°C): 471mW.

Features

MAX3485EESA+T features: (1)Operate from a Single 3.3V Supply－No Charge Pump; (2)Interoperable with +5V Logic; (3)8ns Max Skew (MAX3485/MAX3490/MAX3491); (4)Slew－Rate Limited for Errorless Data Transmission (MAX3483/MAX3488); (5)2nA Low－Current Shutdown Mode (MAX3483/MAX3485/MAX3486/MAX3491); (6)－7V to +12V Common－Mode Input Voltage Range; (7)Allows up to 32 Transceivers on the Bus; (8)Full－Duplex and Half－Duplex Versions Available; (9)Industry Standard 75176 Pinout (MAX3483/MAX3485/MAX3486); (10)Current－Limiting and Thermal Shutdown for Driver Overload Protection.
