Product Summary
The MAX1487CSA+T is a low-power transceiver for RS-485 and RS- 422 communication. Each part contains one driver and one receiver. The MAX1487CSA+T features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX1487CSA+T is not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120μA and 500μA of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX1487CSA+T has a low-current shutdown mode in which they consume only 0.1μA. All parts operate from a single 5V supply.
Parametrics
MAX1487CSA+T absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (RE, DE): －0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): －0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): －8V to +12.5V; (5)Receiver Input Voltage (A, B): －8V to +12.5V; (6)Receiver Output Voltage (RO): －0.5V to (VCC +0.5V); (7)Storage Temperature Range : －65°C to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃
Features
MAX1487CSA+T features: (1)For Multiple Transceiver Applications MAX3030E–MAX3033E: ±15kV ESD－Protected, +3.3V, Quad RS－422 Transmitters; (2)For Fail－Safe Applications MAX3080–MAX3089: Fail－Safe, High－Speed (10Mbps), Slew－Rate－Limited RS－485/RS－422 Transceivers; (3)For Low－Voltage Applications MAX3483E/MAX3485E/MAX3486E/MAX3488E/ MAX3490E/MAX3491E: +3.3V Powered, ±15kV ESD－Protected, 12Mbps, Slew－Rate－Limited, True RS－485/RS－422 Transceivers.

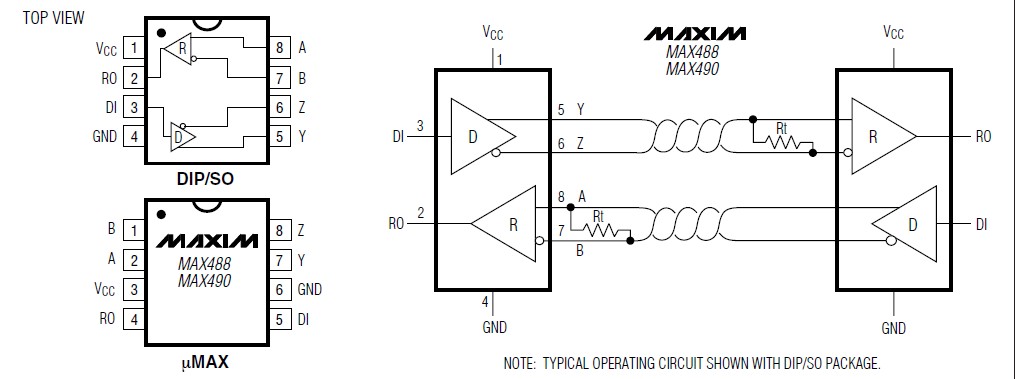

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

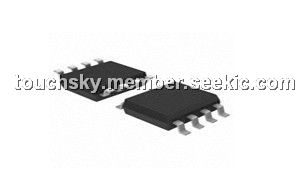

 MAX1487CSA+T |
Maxim Integrated Products |
RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver |
Data Sheet |
|
|
||||||||||||
