MAX3485CSA+T

3.3V, low－power transceiver, 7V, 471mW, SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.99~4.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.99~4.45

PartNumber:: MAX3485CSA+T

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. John's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:MAX3485CSA+T
US $1.99 - 4.45
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX3485CSA+T is a 3.3V, low－power transceiver for RS－485 and RS－422 communication. Each part contains one driver and one receiver. The MAX3485CSA+T features slew－rate－limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error－free data transmission at data rates up to 250kbps. The partially slew－rate－limited MAX3486 transmits up to 2.5Mbps. The MAX3485CSA+T transmits at up to 10Mbps. Drivers are short－circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high－impedance state. The receiver input has a fail－safe feature that guarantees a logic－high output if both inputs are open circuit. The MAX3485CSA+T features full－duplex communication, while the MAX3485CSA+T is designed for half－duplex communication.

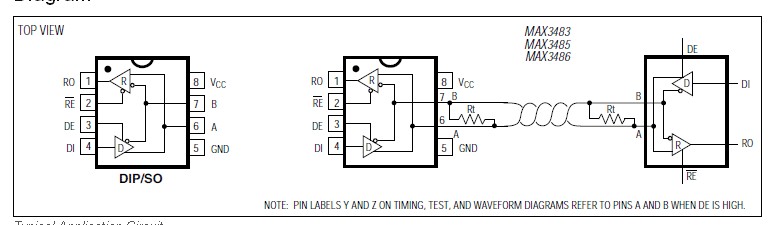

Parametrics

MAX3485CSA+T absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Control Input Voltage (RE, DE): －0.3V to 7V; (3)Driver Input Voltage (DI): －0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z): －7.5V to 12.5V; (5)Receiver Input Voltage (A, B): －7.5V to 12.5V; (6)Receiver Output Voltage (RO): －0.3V to (VCC + 0.3V); (7)Continuous Power Dissipation (TA = +70°C): 8－Pin Plastic DIP (derate 9.09mW/°C above +70°C): 727mW, 8－Pin SO (derate 5.88mW/°C above +70°C): 471mW.

Features

MAX3485CSA+T features: (1)Operate from a Single 3.3V Supply－No Charge Pump; (2)Interoperable with +5V Logic; (3)8ns Max Skew (MAX3485/MAX3490/MAX3491); (4)Slew－Rate Limited for Errorless Data Transmission (MAX3483/MAX3488); (5)2nA Low－Current Shutdown Mode (MAX3483/MAX3485/MAX3486/MAX3491); (6)－7V to +12V Common－Mode Input Voltage Range; (7)Allows up to 32 Transceivers on the Bus; (8)Full－Duplex and Half－Duplex Versions Available; (9)Industry Standard 75176 Pinout (MAX3483/MAX3485/MAX3486); (10)Current－Limiting and Thermal Shutdown for Driver Overload Protection.
