Product Summary
The PGA202KP is a monolithic instrumentation amplifier with digitally controlled gains of 1, 10, 100, and 1000. The PGA202KP provides gains of 1, 2, 4, and 8. Both have TTL or CMOS compatible inputs for easy microprocessor interface. Both have FET inputs and a new transconductance circuitry that keeps the bandwidth nearly constant with gain. Gain and offsets are laser trimmed to allow use without any external components. Both amplifiers are available in ceramic or plastic packages. The ceramic package is specified over the full industrial temperature range while the plastic package covers the commercial range.
Parametrics
PGA202KP absolute maximum ratings: (1)Supply Voltage : ±18V; (2)Internal Power Dissipation : 750mW; (3)Analog and Digital Inputs : ±(VCC + 0.5V); (4)Operating Temperature Range: G Package : －55°C to +125°C, P Package : －40°C to +100°C; (5)Lead Temperature (soldering, 10s): 300°C; (6)Output Short Circuit Duration : Continuous; (7)Junction Temperature : 175°C.
Features
PGA202KP features: (1)digitally programmable gains: decade model—pga202 gains of 1, 10, 100, 1000, binary model—pga203 gains of 1, 2, 4, 8; (2)low bias current: 50pa max; (3)fast settling: 2ms to 0.01%; (4)low non-linearity: 0.012% max; (5)high cmrr: 80db min; (6)new transconductance circuitry; (7)low cost.

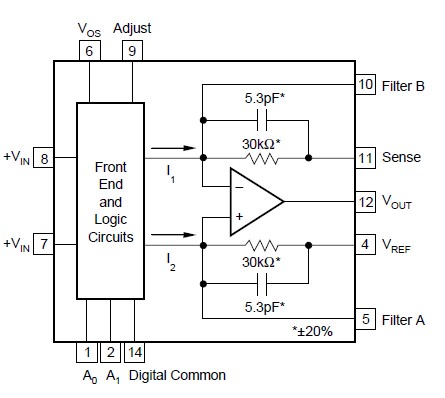

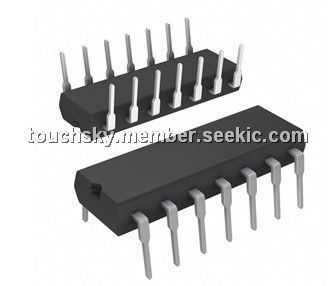

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PGA202KP |
Texas Instruments |
Instrumentation Amplifiers Digitally Controlled Programmable-Gain |
Data Sheet |
|
|
||||||||||||
|
PGA202KPG4 |
Texas Instruments |
Instrumentation Amplifiers Dig Cntrld Program Gain Instrum Amp |
Data Sheet |
|
|
||||||||||||
