Product Summary

The OP296GSZ CBCMOS operational amplifier features micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from +3 V to +12 V of OP296GSZ make these amplifiers perfectly suited to monitor battery usage and to control battery charging. The dynamic performance of OP296GSZ, including 26 nV/√Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.

Parametrics

OP296GSZ absolute maximum ratings: (1)Supply Voltage: +15 V; (2)Input Voltage: +15 V; (3)Differential Input Voltage: +15 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range: P, S, RU Package: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +125℃; (7)Junction Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features

OP296GSZ features: (1)Rail-to-Rail Input and Output Swing; (2)Low Power: 60 mA/Amplifier; (3)Gain Bandwidth Product: 450 kHz; (4)Single-Supply Operation: +3 V to +12 V; (5)Low Offset Voltage: 300 mV max; (6)High Open-Loop Gain: 500 V/μV; (7)Unity-Gain Stable; (8)No Phase Reversal.

Diagrams

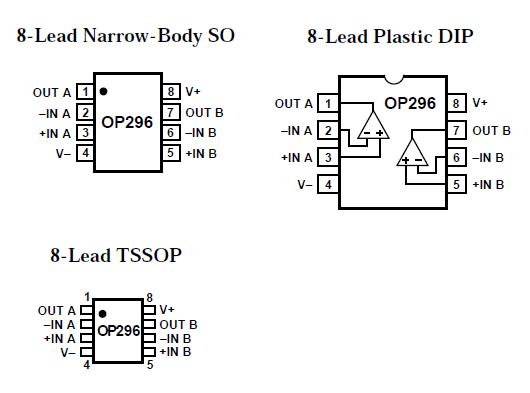

OP296GSZ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP296GSZ
OP296GSZ

IC OPAMP GP R-R 450KHZ LP 8SOIC
Data Sheet
0-1: $2.74
1-10: $2.44
10-100: $2.00
100-250: $1.81
250-500: $1.62
500-1000: $1.37
1000-2500: $1.30
OP296GSZ-REEL
OP296GSZ-REEL

IC OPAMP GP R-R 450KHZ LP 8SOIC
Data Sheet
0-2500: $1.30
OP296GSZ-REEL7
OP296GSZ-REEL7

IC OPAMP GP R-R 450KHZ LP 8SOIC
Data Sheet
0-1000: $1.37
