Product Summary
The OPA2340UA/2K5 rail-to-rail CMOS operational amplifier is optimized for low voltage, single supply operation. Rail-to-rail input/output and high speed operation make it ideal for driving sampling analog-to-digital converters. The OPA2340UA/2K5 is also well suited for general purpose and audio applications as well as providing I/V conversion at the output of D/A converters. Single, dual, and quad versions have identical specifications for design flexibility. The OPA2340UA/2K5 operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 500mV below ground and 500mV above the positive supply. The applications of the OPA2340UA/2K5 include: (1)driving a/d converters; (2)pcmcia cards; (3)data acquisition; (4)process control; (5)audio processing; (6)communications; (7)active filters; (8)test equipment.
Parametrics
OPA2340UA/2K5 absolute maximum ratings: (1)Supply Voltage: 5.5V; (2)Signal Input Terminals, Voltage: (V–) –0.5V to (V+) +0.5V, Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA2340UA/2K5 features: (1)rail-to-rail input; (2)rail-to-rail output (within 1mV); (3)MicroSIZE packages; (4)wide bandwidth: 5.5MHz; (5)high slew rate: 6V/ms; (6)low thd+noise: 0.0007% (f = 1kHz); (7)low quiescent current: 750mA/channel; (8)single, dual, and quad.

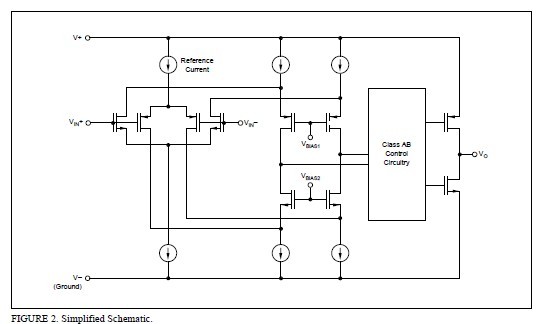

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA2340UA/2K5 |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail |
Data Sheet |
|
|
||||||||||||
|
OPA2340UA/2K5G4 |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail |
Data Sheet |
|
|
||||||||||||
