Product Summary
The OPA454AIDDAR is a low-cost operational amplifier with ±5V (10V) to ±50V (100V) high voltage (100V) and relatively high current drive (25mA). It is unity-gain stable and has a gain-bandwidth product of 2.5MHz. The OPA454AIDDAR is internally protected against over-temperature conditions and current overloads. It is fully specified to perform over a wide power-supply range of ±5V to ±50V or on a single supply of 10V to 100V. The status flag is an open-drain output that allows it to be easily referenced to standard low-voltage logic circuitry. This high-voltage op amp provides excellent accuracy, wide output swing, and is free from phase inversion problems that are often High-V Current Sense found in similar amplifiers. The output can be independently disabled using the Enable/Disable Pin that has its own common return pin to allow easy interface to low-voltage logic circuitry. This disable is accomplished without disturbing the input signal path, not only saving power but also protecting the load. Featured in a small exposed metal pad package, the OPA454AIDDAR is easy to heatsink over the extended industrial temperature range, －40°C to +85°C.
Parametrics

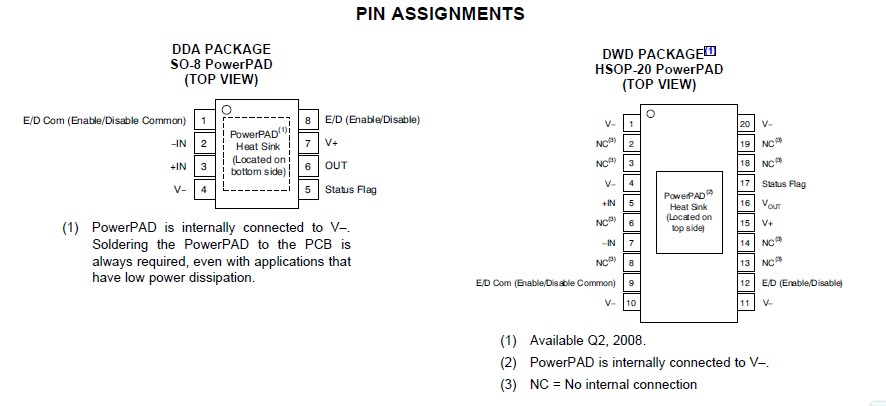

OPA454AIDDAR absolute maximum ratings: (1)Supply Voltage VS = (V+)－ (V－): 120 V; (2)Signal Input Terminals, Voltage(2): (V－)－ 0.3 to (V+)+ 0.3 V; (3)Signal Input Terminals, Current(2): ±10 mA; (4)E/D to E/D Com Voltage: +5.5 V; (5)Output Short-Circuit(3)ISC: Continuous; (6)Operating Temperature TJ: －55 to +125 °C; (7)Storage Temperature:: －55 to +125 °C; (8)Junction Temperature TJ: +150 °C.
Features
OPA454AIDDAR features: (1)wide power-supply range ±5v (10v)to ±50v (100v); (2)high output load drive: io > ±50ma; (3)wide output voltage swing: 1v to rails; (4)independent output disable or shutdown; (5)wide temperature range: －40°c to +85°c; (6)packages: so and hsop powerpadtm.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA454AIDDAR |
Texas Instruments |
Operational Amplifiers - Op Amps Hi Vltg Hi-Current OP AMP G=1 Stable |
Data Sheet |
|
|
||||||||
|
OPA454AIDDARG4 |
Texas Instruments |
Operational Amplifiers - Op Amps 120V Absolute Max Supply Op Amp |
Data Sheet |
|
|
||||||||
