Product Summary
The TLC5615CDR is a 10－bit voltage output digital－to－analog converter (DAC) with a buffered reference input (high impedance). The DAC has an output voltage range that is two times the reference voltage, and the DAC is monotonic. The TLC5615CDR is simple to use, running from a single supply of 5V. A power－on－reset function is incorporated to ensure repeatable start－up conditions. Digital control of the TLC5615CDR is over a three－wire serial bus that is CMOS compatible and easily interfaced to industry standard microprocessor and microcontroller devices. The device receives a 16－bit data word to produce the analog output. The digital inputs feature Schmitt triggers for high noise immunity. Digital communication protocols include the SPITM, QSPITM, and MicrowireTM standards.
Parametrics
TLC5615CDR absolute maximum ratings: (1)Supply voltage (VDD to AGND): 7V; (2)Digital input voltage range to AGND: －0.3V to VDD + 0.3V; (3)Reference input voltage range to AGND: －0.3V to VDD + 0.3V; (4)Output voltage at OUT from external source: VDD + 0.3V; (5)Continuous current at any terminal: ±20mA; (6)Storage temperature range, Tstg: －65°C to +150°C; (7)Lead temperature 1,6mm (1/16 inch)from case for 10 seconds: +260°C.
Features
TLC5615CDR features: (1)10－Bit CMOS Voltage Output DAC in an 8－Terminal Package; (2)5V Single Supply Operation; (3)3－Wire Serial Interface; (4)High－Impedance Reference Inputs ; (5)Voltage Output Range: 2 Times the Reference Input Voltage; (6)Internal Power－On Reset; (7)Low Power Consumption: 1.75mW; (8)Update Rate of 1.21MHz; (9)Settling Time to 0.5LSB: 12.5ms Typ ; (10)Monotonic Over Temperature; (11)Pin－Compatible With the Maxim MAX515.

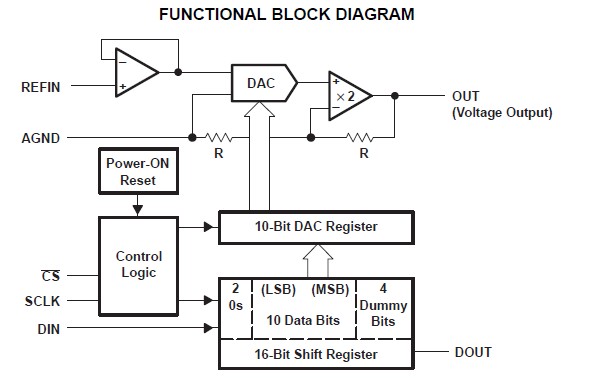

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC5615CDR |
Texas Instruments |
DAC (D/A Converters) 10-Bit 12.5 us DAC Serial Input Lo-Pwr |
Data Sheet |
|
|
||||||||||||
|
TLC5615CDRG4 |
Texas Instruments |
DAC (D/A Converters) 10-Bit 12.5 us DAC Serial Input Lo-Pwr |
Data Sheet |
|
|
||||||||||||
