Product Summary
The SN74LVC1G14DBVR is a single Schmitt－trigger inverter. The SN74LVC1G14DBVR is designed for 1.65－V to 5.5－V VCC operation. The SN74LVC1G14DBVR contains one inverter and performs the Boolean function Y=A. The device functions as an independent inverter, but because of Schmitt action, it may have different input threshold levels for positive－going (VT+) and negative－going (VT－) signals. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
Parametrics
SN74LVC1G14DBVR absolute maximum ratings: (1)Supply voltage range, VCC: －0.5 V to 6.5 V; (2)Input voltage range, VI (see Note 1): －0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO (see Note 1): －0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO (see Notes 1 and 2): －0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): －50 mA; (6)Output clamp current, IOK (VO < 0): －50 mA; (7)Continuous output current, IO: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Package thermal impedance, θJA (see Note 3): DBV package: 206°C/W.
Features
SN74LVC1G14DBVR features: (1)Supports 5 V VCC Operation; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 4.6 ns at 3.3 V; (4)Low Power Consumption, 10 μA Max ICC; (5)±24 mA Output Drive at 3.3 V; (6)Ioff Supports Partial Power Down Mode Operation; (7)Latch－Up Performance Exceeds 100 mA Per JESD 78, Class II; (8)ESD Protection Exceeds JESD 22: 2000V Human Body Model (A114－A), 200 V Machine Model (A115－A), 1000－V Charged Device Model (C101).

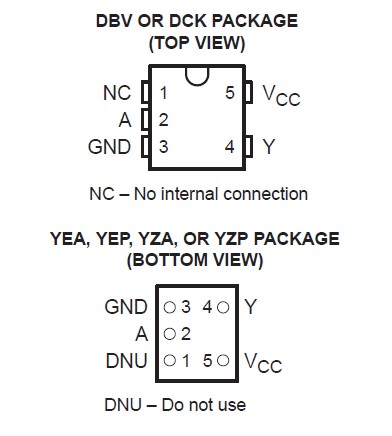

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC1G14DBVR |
Texas Instruments |
Inverters SINGLE SCHMITT TRIGGER INVERTER |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G14DBVRE4 |
Texas Instruments |
Inverters SINGLE SCHMITT TRIGGER INVERTER |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G14DBVRG4 |
Texas Instruments |
Inverters SINGLE SCHMITT TRIGGER INVERTER |
Data Sheet |
|
|
||||||||||||
