Product Summary

The ADM487EARZ is a 5 V, low power data transceiver with ±15 kV ESD protection suitable for half-duplex communication on multipoint bus transmission lines. The ADM487EARZ is designed for balanced data transmission and comply with Telecommunication Industry Association/Electronics Indus-tries Association (TIA/EIA) standards RS-485 and RS-422. The ADM487EARZ has a 1/4 unit load receiver input impedance that allows up to 128 transceivers on a bus, whereas the ADM487EARZ allows up to 32 transceivers on a bus.

Parametrics

ADM487EARZ absolute maximum ratings: (1)VCC to GND: -0.5 V to +6 V; (2)Digital I/O Voltage (DE, RE): -0.5 V to (VCC + 0.5 V); (3)Driver Input Voltage (DI): -0.5 V to (VCC + 0.5 V); (4)Receiver Output Voltage (RO): -0.5 V to (VCC + 0.5 V); (5)Driver Output/Receiver Input Voltage (A, B): -9 V to +14 V; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)θJA Thermal Impedance: 158°C/W; (9)SOIC-8 Lead Temperature Soldering (10 sec): 260°C.

Features

ADM487EARZ features: (1)TIA/EIA RS-485-/RS-422-compliant; (2)ESD protection on RS-485 I/O pin; (3)±15 kV human body model; (4)Data rates: 250 kbps; (5)Half-duplex option; (6)Reduced slew rates for low EMI; (7)-7 V to +12 V common-mode input range; (8)Thermal shutdown and short-circuit protection; (9)8-lead SOIC package.

Diagrams

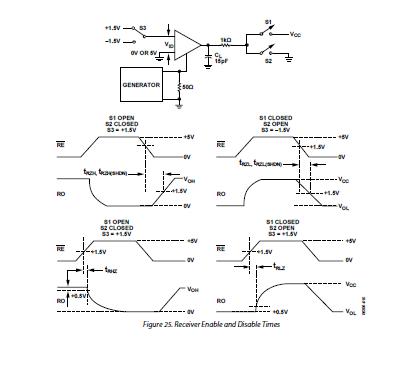

ADM487EARZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM487EARZ
ADM487EARZ

IC TXRX HALF DUP RS485/422 8SOIC
Data Sheet
0-1: $1.86
1-10: $1.66
10-100: $1.36
100-250: $1.23
250-500: $1.10
500-1000: $0.93
1000-2500: $0.89
ADM487EARZ-REEL7
ADM487EARZ-REEL7

IC TXRX HALF DUP RS485/422 8SOIC
Data Sheet
0-1000: $0.93
