Product Summary

The TL16C752BPTR is a dual universal asynchronous receiver/transmitter (UART) with 64-byte FIFOs, automatic hardware/software flow control, and data rates up to 3 Mbps. The TL16C752BPTR offers enhanced features. It has a transmission control register (TCR) that stores receiver FIFO threshold levels to start/stop transmission during hardware and software flow control. With the FIFO RDY register, the TL16C752BPTR software gets the status of TXRDY/RXRDY for all four ports in one access. On-chip status registers provide the user with error indications, operational status, and modem interface control. System interrupts may be tailored to meet user requirements. An internal loopback capability allows onboard diagnostics.

Parametrics

TL16C752BPTR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 3.6 V; (2)Input voltage range, VI: –0.5 V to VCC +0.5 V; (3)Output voltage range, VO: –0.5 V to VCC +0.5 V; (4)Operating free-air temperature range, TA: –40 to 85℃; (5)Storage temperature range, Tstg: –65 to 150℃.

Features

TL16C752BPTR features: (1)Pin Compatible With ST16C2550 With Additional Enhancements; (2)Up to 1.5 Mbps Baud Rate When Using Crystal (24 MHz Input Clock); (3)Up to 3 Mbps Baud Rate When Using Oscillator or Clock Source (48 MHz Input Clock); (4)64-Byte Transmit FIFO; (5)64-Byte Receive FIFO With Error Flags; (6)Programmable and Selectable Transmit and Receive FIFO Trigger Levels for DMA and Interrupt Generation; (7)Programmable Receive FIFO Trigger Levels for Software/Hardware Flow Control; (8)Software/Hardware Flow Control: Programmable Xon/Xoff Characters; Programmable Auto-RTS and Auto-CTS; (9)Optional Data Flow Resume by Xon Any Character; (10)DMA Signalling Capability for Both Received and Transmitted Data; (11)Supports 3.3-V Operation; (12)Software Selectable Baud Rate Generator; (13)Prescaler Provides Additional Divide By 4 Function; (14)Fast Access Time 2 Clock Cycle IOR/IOW Pulse Width; (15)Programmable Sleep Mode; (16)Programmable Serial Interface Characteristics: 5, 6, 7, or 8 Bit Characters; Even, Odd, or No Parity Bit Generation; (17)and Detection; 1, 1.5, or 2 Stop Bit Generation; (18)False Start Bit Detection; (19)Complete Status Reporting Capabilities in Both Normal and Sleep Mode; (20)Line Break Generation and Detection; (21)Internal Test and Loopback Capabilities; (22)Fully Prioritized Interrupt System Controls; (23)Modem Control Functions (CTS, RTS, DSR, DTR, RI, and CD).

Diagrams

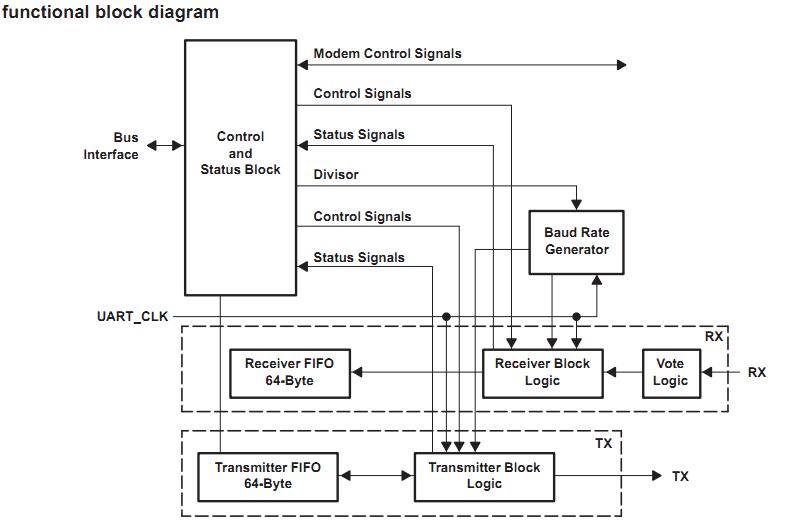

TL16C752BPTR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TL16C752BPTR
TL16C752BPTR

Texas Instruments

UART Interface IC Dual UART With 64-Byte FIFO

Data Sheet

0-1: $3.33
1-25: $2.44
25-100: $2.06
100-250: $1.96
TL16C752BPTRG4
TL16C752BPTRG4

Texas Instruments

UART Interface IC Dual UART With 64-Byte FIFO

Data Sheet

0-775: $1.92
775-1000: $1.90
1000-2000: $1.86
