Product Summary
The TPS75701KTTR is a low dropout voltage regulator. The TPS75701KTTR family of 3 A low dropout (LDO) regulators contains four fixed voltage option regulators with integrated power good (PG) and an adjustable voltage option regulator. These devices are capable of supplying 3 A of output current with a dropout of 150 mV (TPS75701KTTR). Therefore, the device is capable of performing a 3.3 V to 2.5 V conversion. Quiescent current is 125 μA at full load and drops down to less than 1 μA when the device is disabled. The TPS75701KTTR is designed to have fast transient response for large load current changes.
Parametrics
TPS75701KTTR absolute maximum ratings: (1)ESD rating, CDM: 500 V; (2)ESD rating, HBM: 2 kV; (3)Storage temperature range, Tstg: －65°C to 150°C; (4)Output voltage, VO (OUTPUT, FB): 5.5 V; (5)Maximum PG voltage (fixed options only): 6 V.
Features
TPS75701KTTR features: (1) 3-A Low-Dropout Voltage Regulator; (2) Available in 1.5-V, 1.8-V, 2.5-V, and 3.3-V Fixed-Output and Adjustable Versions; (3) Open Drain Power-Good (PG) Status Output (Fixed Options Only); (4) Dropout Voltage Typically 150 mV at 3 A (TPS75733); (5) Low 125 μA Typical Quiescent Current; (6) Fast Transient Response; (7) 3% Tolerance Over Specified Conditions for Fixed-Output Versions; (8) Available in 5-Pin TO–220 and TO－263 Surface-Mount Packages; (9)Thermal Shutdown Protection

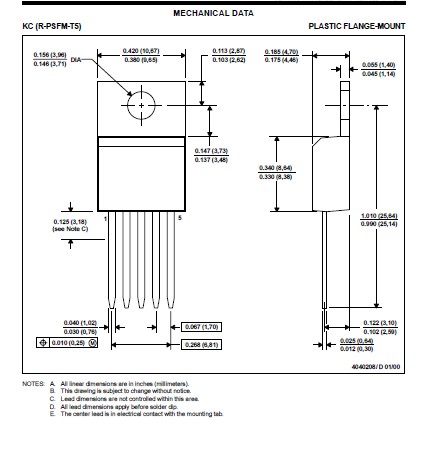

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS75701KTTR |
Texas Instruments |
Low Dropout (LDO) Regulators LDO Adjustable Output 3A |
Data Sheet |
|
|
||||||||||||
|
TPS75701KTTRG3 |
Texas Instruments |
Low Dropout (LDO) Regulators LDO Adjustable Output 3A |
Data Sheet |
|
|
||||||||||||
